Install Stripe in Brain Studio with your Access Token or by creating an account in Mexico through the guided registration flow.
Connect Stripe to enable the provider in your workspace and make its payment tools available in Brain Studio.You can install the integration in two ways:
I already have an account: connect with your Stripe Access Token (test or production).
Create a Stripe account: guided registration available only in Mexico. When you complete it, Brain Studio installs Stripe automatically without asking for credentials.
You can start installing Stripe from different points in Brain Studio. All paths use the same provider configuration.
Jelou Agent
Marketplace
Payments node
Templates
Ask Jelou Agent to add Stripe payments while you build or adjust a flow.Examples:
“Add Stripe payments to this flow”
“I need to charge with Stripe in this case”
Jelou Agent detects Stripe as an available provider from Marketplace and starts the assisted installation flow.
Open Marketplace, search for Stripe under Payments & Processing, or use the search bar.Then click Connect or Install to start the installation flow.

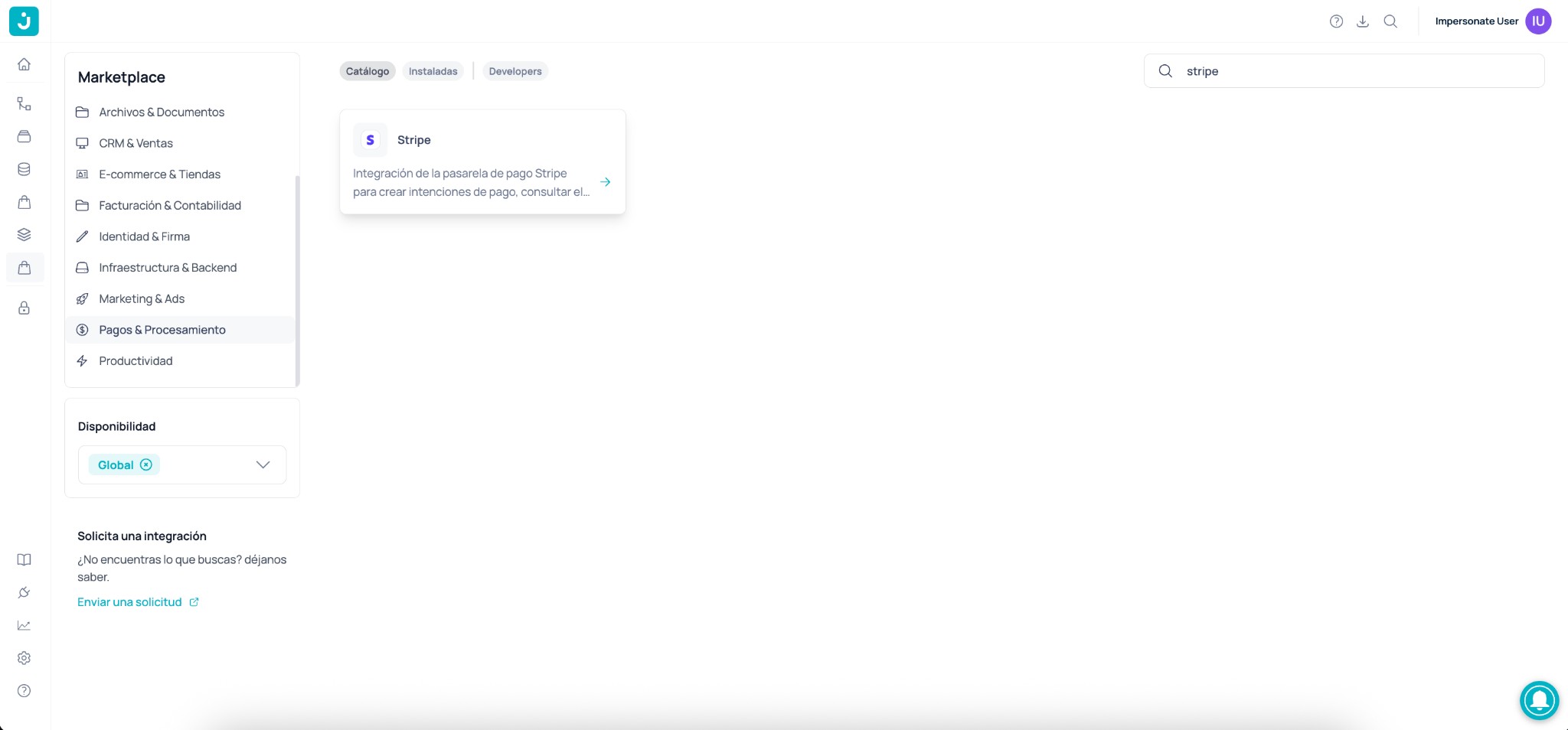

Stripe available in the Marketplace catalog
From the Canvas toolbar, open the Payments node.Inside the Payments node, you will see Stripe as an available provider. If it is not connected yet, click Install to start the same connection flow used by Marketplace, Jelou Agent, and templates.
Some Brain Studio templates may include payment configuration.During template creation, Brain Studio may ask you to choose a payment provider and connect Stripe as part of the setup flow.
All installation paths use the same provider configuration. What changes is where you start the flow.
Regardless of the entry point, the first modal step is the same.
1
Choose account type and environment
Brain Studio asks whether you already have a Stripe account or need to create one.You must also select the connection environment:
Test credentials — for development and QA without real transactions.
Production credentials — for real charges.
The Create a Stripe account option shows the Only Mexico badge and is available only for merchants in that country.

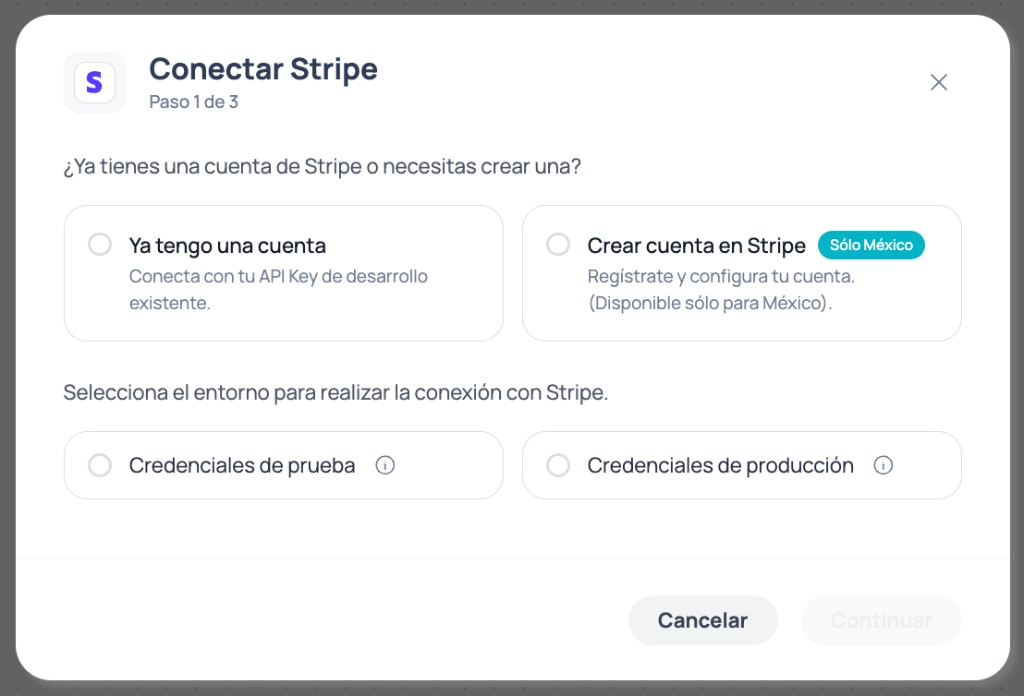

Step 1: choose account type and connection environment
Click Continue once you have completed both selections.
From here, the flow splits based on your choice.
I already have an account
Create a Stripe account
1
Enter your Access Token
Paste your Access Token for the environment selected in the previous step.The field accepts keys in the format sk_test_... (test) or sk_live_... (production).Use the How to obtain credentials link in the modal if you need help getting your token or configuring webhooks in Stripe Dashboard.
In Stripe, the Access Token corresponds to the Secret API Key. Do not use the Publishable Key (pk_).
The Access Token must match the environment chosen in step 1. If you selected Test credentials, use a test token; if you selected Production credentials, use a live token.

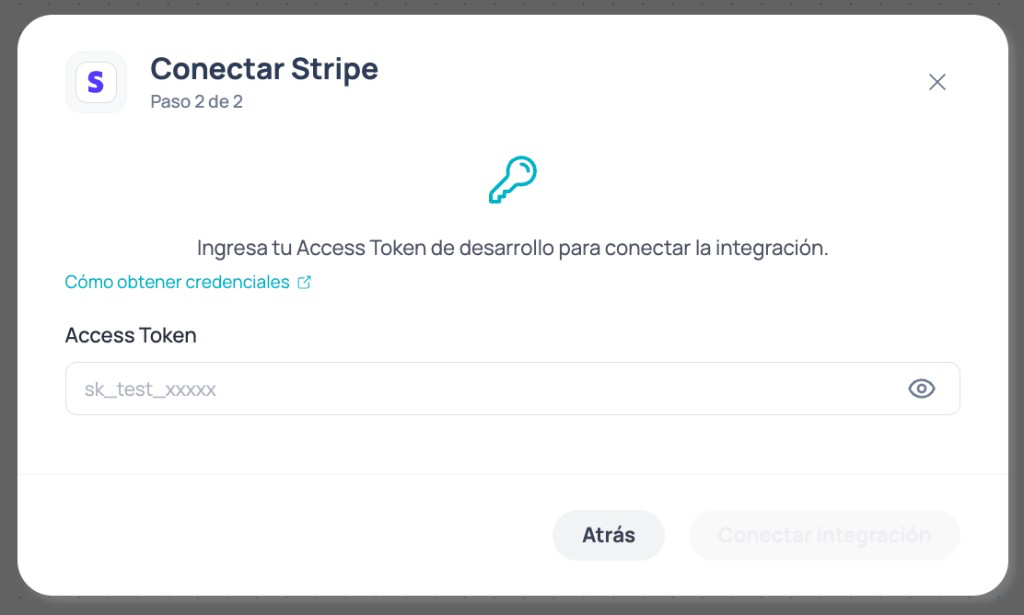

Step 2 of 2: enter your Access Token
2
Confirm connection
Click Connect integration. Brain Studio will validate the token and make Stripe available in your workspace.
If Stripe appears as installed in Marketplace and its tools are available in Canvas, the integration was enabled successfully.
1
Confirm registration link generation
Brain Studio shows a summary of the registration you will complete in Stripe.The text varies by environment:
Test: it will help you complete registration to test payments in development.
Production: it will guide you to validate your production account in Stripe.
If you do not have an account yet, you can create one during registration.Click Generate registration link to continue.

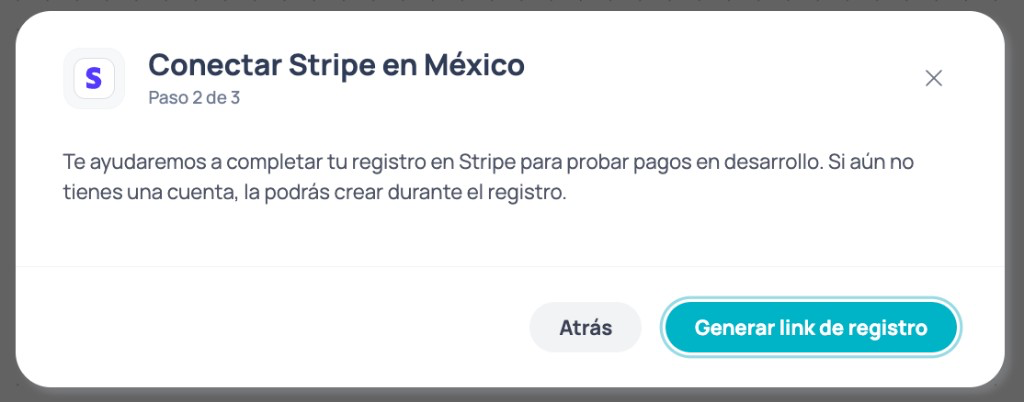

Step 2 of 3: confirm registration link generation
2
Copy or open the registration link
Brain Studio generates a unique registration link for your session.
Copy the link using the copy button.
Or click Open registration in Stripe to go directly to the form.
The link has limited expiration time (approximately 30 minutes). If it expires, restart the installation flow.

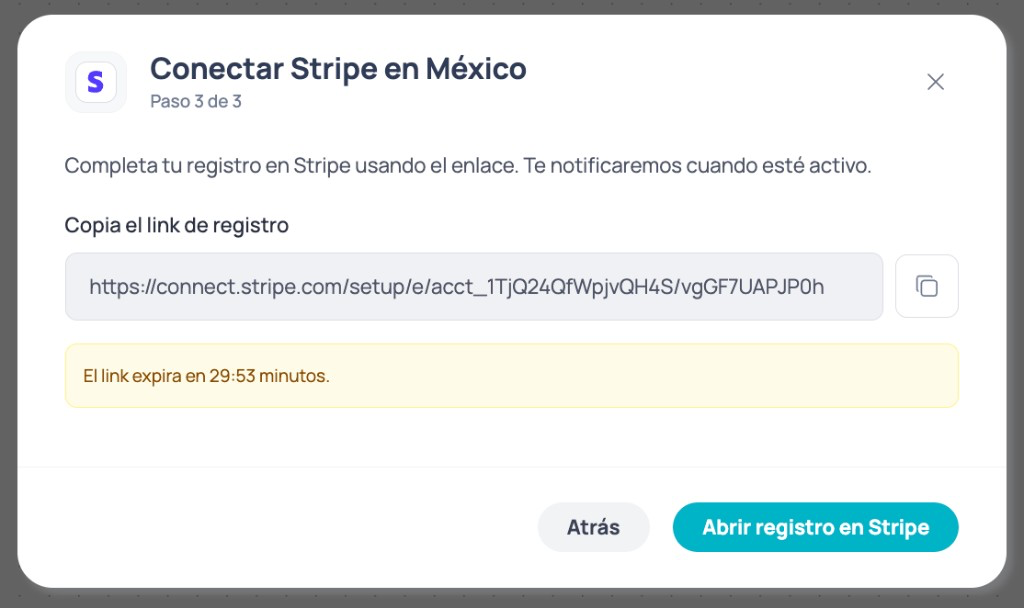

Step 3 of 3: copy or open the registration link
3
Complete registration in Stripe
On the Stripe screen, complete the requested data (email, phone, and other required information).During test-mode registration, Stripe may offer shortcuts with test data.

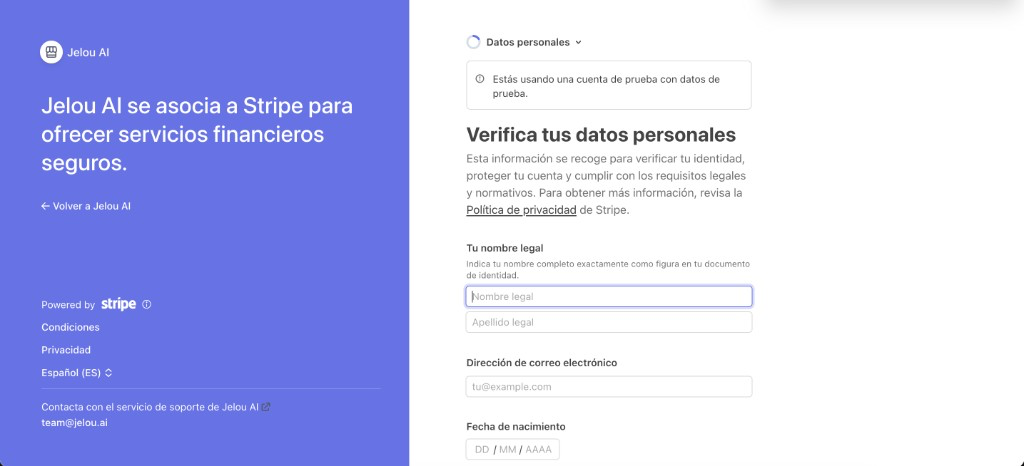

Stripe registration: complete your personal data
When you finish registration, Brain Studio detects that the account is active and installs Stripe automatically. You do not need to enter credentials again.
If you installed Stripe in development, you can move to production when ready. The modal asks whether you already have a production account or need to create a new one in Mexico.
1
Open Go to production
You can start the change from:
The Stripe node’s advanced sidebar in Canvas (Advanced tab → Production)
The Stripe page in Marketplace
Both open the same modal.
2
Choose how to connect the production account
Select one of two options:
Connect existing account: enter your production Access Token (sk_live_...). Requires webhooks configured in Live mode in Stripe Dashboard.
Connect new account: complete additional registration in Stripe to validate your account. Available only in Mexico. Brain Studio generates a new production registration link.

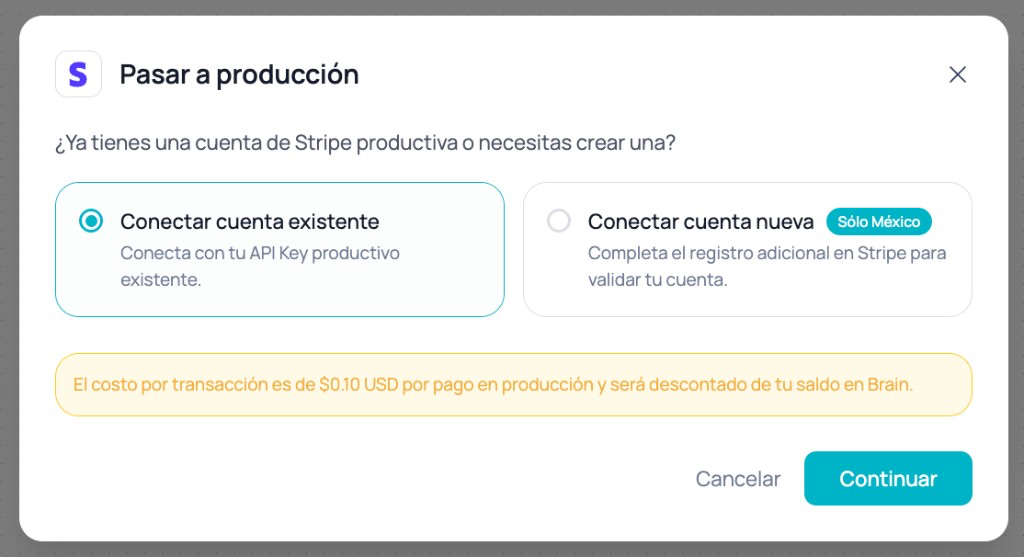

Go to production: connect existing account or create new account in Mexico
In production, each transaction costs $0.10 USD per payment, deducted from your Brain Studio balance, in addition to Stripe fees.
3
Complete the chosen flow
Existing account: paste your production Access Token and confirm.
New account: generate the link, complete registration in Stripe, and wait for automatic confirmation in Brain Studio.
4
Confirm the change
Once completed, the integration runs in Production.
