Connect Payphone to enable the provider in your workspace and make the payment node available in Brain Studio with an embedded WebView experience.

​
Before you begin

Make sure you have:
  • An active Payphone Business account with at least one active store
  • An approved Access Token and Store ID from Payphone Developer
  • The applied VAT you will use for the operation
To obtain or review credentials, follow Obtaining credentials.
The Access Token and Store ID are only available after Payphone approves your company request.Payphone uses the same credentials for test and production. The environment must also match in your Payphone Developer application (Test / Production selector).

​
Ways to start installation

You can start Payphone installation from different points in Brain Studio. All routes use the same provider configuration.
Ask Jelou Agent to add payments with Payphone while you build or adjust a flow.Examples:
  • “Add Payphone payments to this flow”
  • “I need a Payphone checkout for this case”
Jelou Agent detects Payphone as an available provider from Marketplace and triggers the assisted installation flow.
All installation routes use the same provider configuration. What changes is where you start the flow.

​
Common installation flow

Regardless of the entry point, the shared process is as follows.
The first modal asks you to choose Try with Jelou or Connect my account.
  • Try with Jelou: installs the gateway in test mode, without an account or your own credentials.
  • Connect my account: uses your test or production credentials. Continue with the steps on this page.
1

Enter Token and Store ID

Paste the Access Token and Store ID from Payphone Developer.

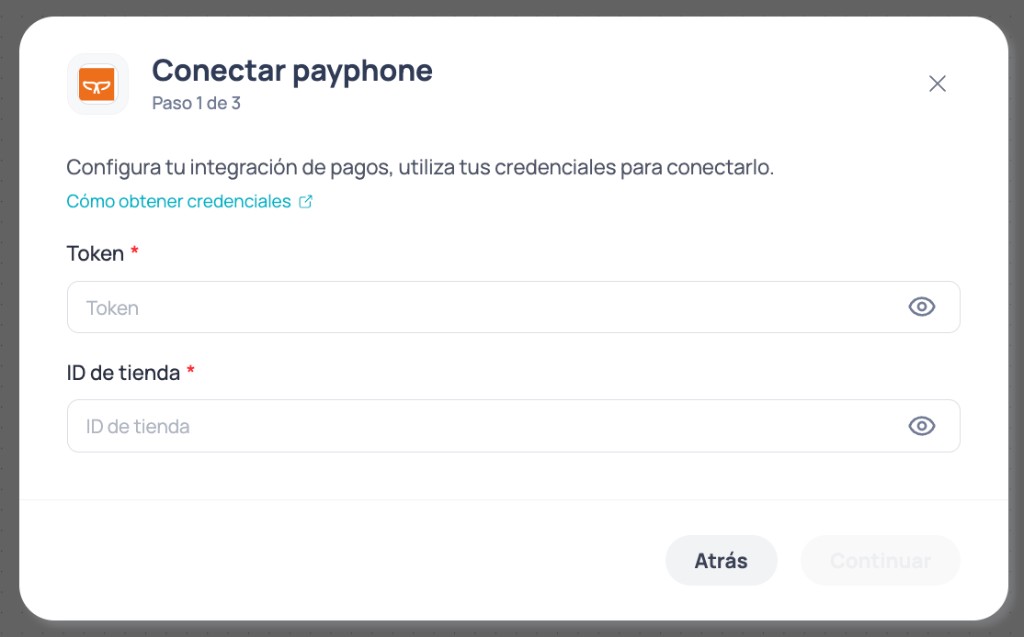

Connect Payphone modal step 1 of 3 with Token and Store ID fields

Step 1 of 3: enter Token and Store ID

2

Choose test or production environment

Select Test environment or Production environment.Payphone does not use different credentials per environment: the Token and Store ID are the same. This step defines the initial mode of the integration in Brain Studio.

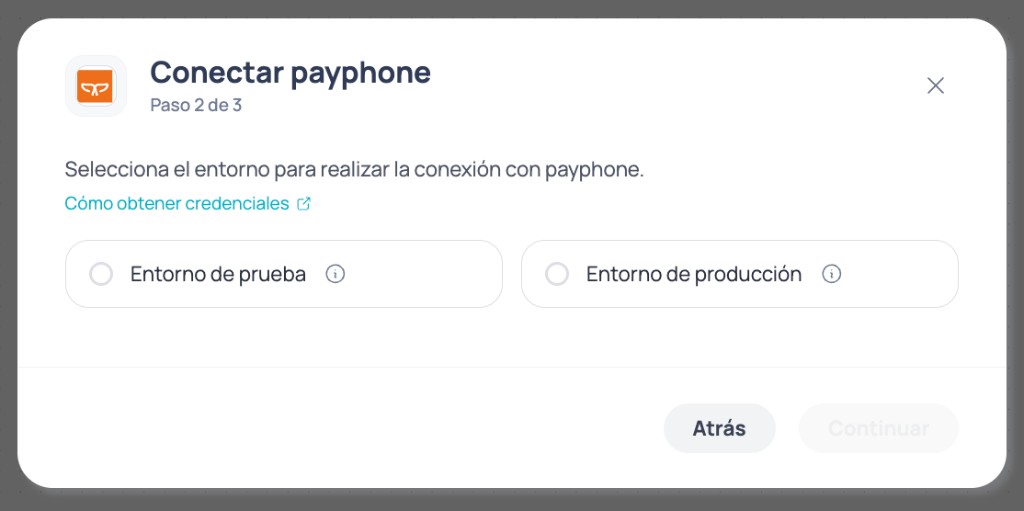

Connect Payphone modal step 2 of 3 with Test environment and Production environment options

Step 2 of 3: select test or production environment

3

Configure applied VAT

Define the applied VAT the integration will use.

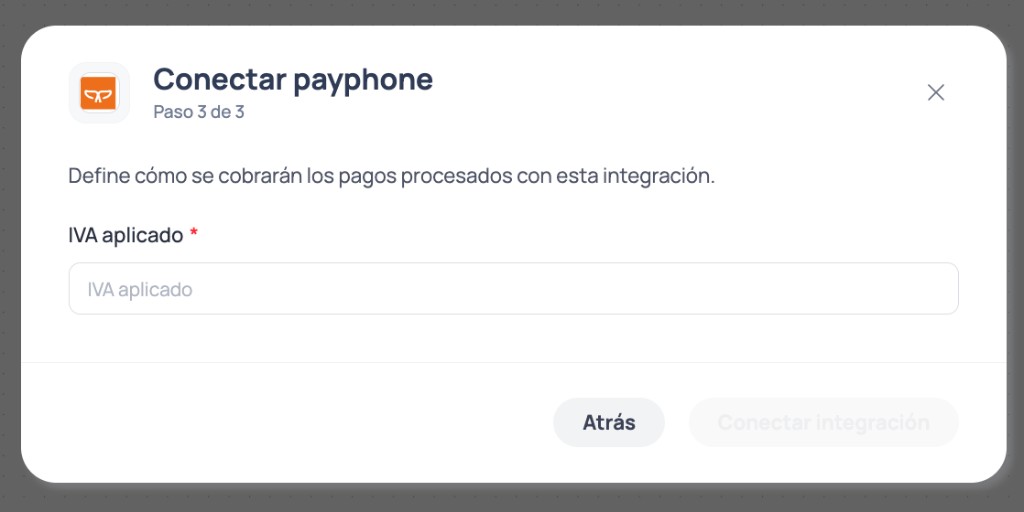

Connect Payphone modal step 3 of 3 with applied VAT field

Step 3 of 3: configure applied VAT

4

Confirm connection

Press Connect integration. Brain Studio will save the configuration and make Payphone available in your workspace.The charge currency is USD and appears in the node’s Advanced tab.
5

Use Payphone from the Payments node in Canvas

After installing, you can use Payphone from the Payments node in Canvas, regardless of whether you started installation from Jelou Agent, Marketplace, the Payments node, or a template.

​
Credentials and environment

Payphone uses the same credentials (Token and Store ID) for testing and production. You do not generate a different token when switching environments.
In addition to the environment chosen in Brain Studio, your application in Payphone Developer must be set to Test or Production according to the scenario. If they do not match, the charge may fail or behave inconsistently.Review the selector in Obtaining credentials — Test and production mode.

​
Go to production

If you installed Payphone in test environment, you can go to production when ready. Credentials are not requested again: the Token and Store ID remain the same.
1

Open Go to production

You can start the change from:
  • The Payphone node’s advanced sidebar in Canvas
  • The Payphone page in Marketplace
In both cases, the same confirmation modal opens.
2

Confirm the change

Review the confirmation message and press Go to production.

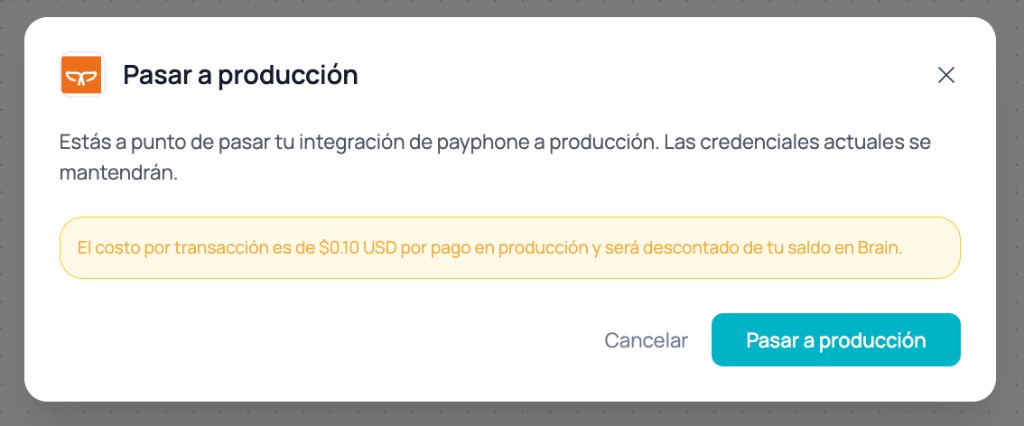

Payphone Go to production modal indicating current credentials will be kept

Go to production confirmation — current credentials are kept

In production, each transaction has a cost of $0.10 USD per payment, deducted from your Brain Studio balance, in addition to provider fees.
3

Align Payphone Developer and the node

Switch your application in Payphone Developer to Production and verify the node shows Production environment in the Advanced tab.

​
Change credentials

  • To move from test to production with the same installation, use Go to production.
  • To rotate credentials or replace Token / Store ID, disconnect Payphone and reinstall following the common installation flow on this page.

​
Next step

Once the integration is connected, continue with:

Usage and configuration

Configure the payment node and continue the flow based on the WebView payment result.
